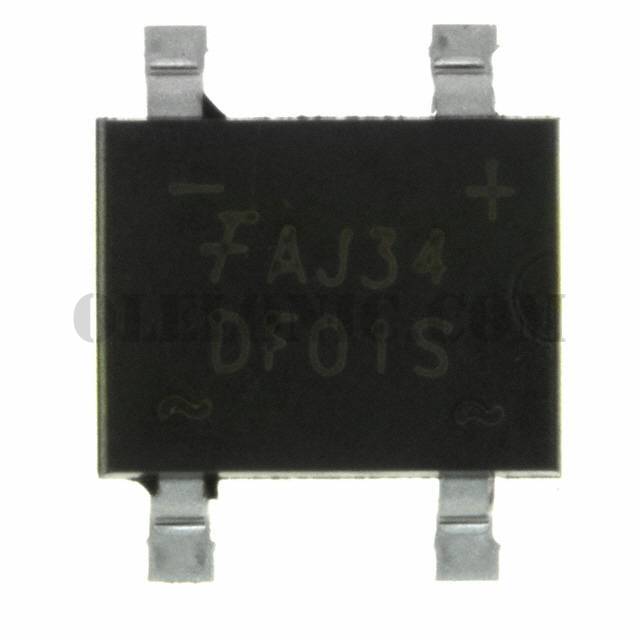

DF01S


DF01S

Part NumberDF01S

Manufacturer

Description

Datasheet

Package / Case4-SMD, Gull Wing

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DF01S - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet
Standard Package1
ManufacturerON Semiconductor
Series-
PackagingCut Tape (CT)
Part StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)100V
Current - Average Rectified (Io)1.5A
Voltage - Forward (Vf) (Max) @ If1.1V @ 1.5A
Current - Reverse Leakage @ Vr5µA @ 100V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SDIP
Base Part NumberDF01
