MCM3400A-TP

MCM3400A-TP

Part NumberMCM3400A-TP

ManufacturerMicro Commercial Co

DescriptionN-CHANNEL,MOSFETS,DFN2020-6L PAC

DatasheetMCM3400A

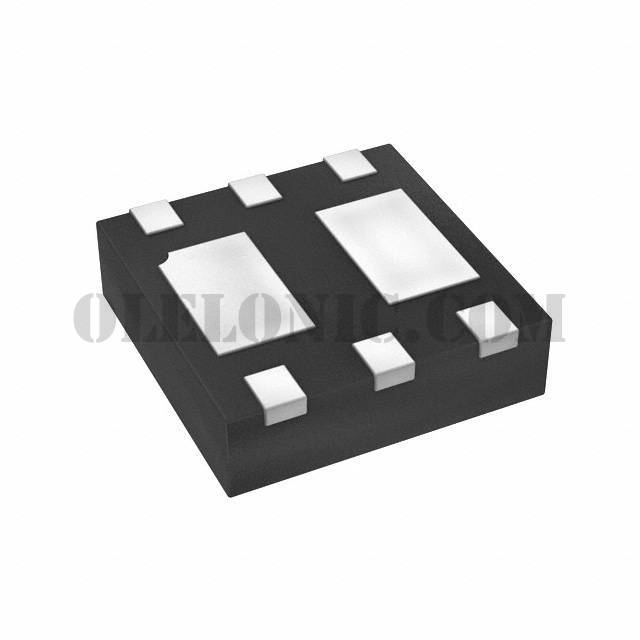

Package / Case6-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 5A 1.4W Surface Mount DFN2020-6L

To learn about the specification of MCM3400A-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCM3400A-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCM3400A-TP.
We are offering MCM3400A-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCM3400A-TP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	MCM3400A
Standard Package	3000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5A
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	32mOhm @ 5.8A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1155pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.4W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN2020-6L
Package / Case	6-VDFN Exposed Pad
