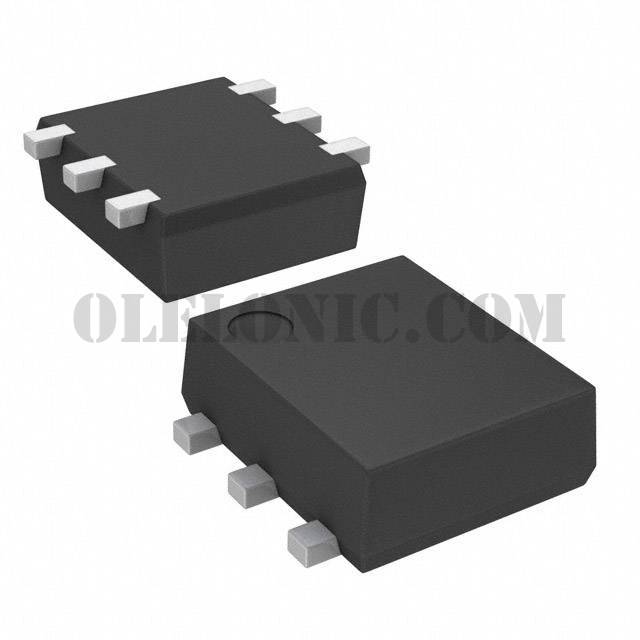

MCH6660-TL-W

MCH6660-TL-W

Part NumberMCH6660-TL-W

ManufacturerON Semiconductor

DescriptionMOSFET N/P-CH 20V 2A/1.5A MCPH6

DatasheetMCH6660

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 20V 2A, 1.5A 800mW Surface Mount 6-MCPH

To learn about the specification of MCH6660-TL-W, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCH6660-TL-W with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCH6660-TL-W.
We are offering MCH6660-TL-W for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCH6660-TL-W - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	MCH6660
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	2A, 1.5A
Rds On (Max) @ Id, Vgs	136mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	128pF @ 10V
Power - Max	800mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	6-MCPH
