MCH6202-TL-E

MCH6202-TL-E

Part NumberMCH6202-TL-E

ManufacturerON Semiconductor

DescriptionTRANS NPN 30V 1.5A MCPH6

DatasheetMCH6102/MCH6202

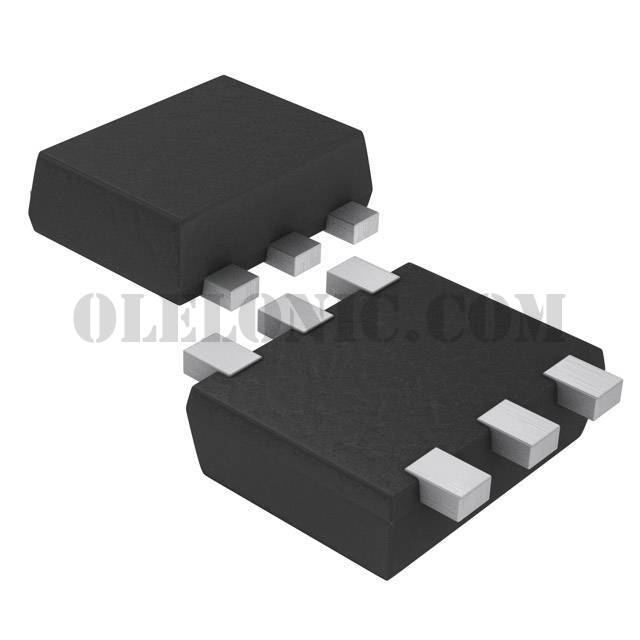

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 30V 1.5A 500MHz 1W Surface Mount 6-MCPH

To learn about the specification of MCH6202-TL-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCH6202-TL-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCH6202-TL-E.
We are offering MCH6202-TL-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCH6202-TL-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MCH6102/MCH6202
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1.5A
Voltage - Collector Emitter Breakdown (Max)	30V
Vce Saturation (Max) @ Ib, Ic	225mV @ 15mA, 750mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V
Power - Max	1W
Frequency - Transition	500MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	6-MCPH
Base Part Number	MCH6202
