Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MB1S - MB8S
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1V @ 500mA
Current - Reverse Leakage @ Vr	5µA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	4-SOIC
Base Part Number	MB6

TBS22J-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-TBS,	View
CBRHDSH1-40L TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 40V Surface Mount 4-HD DIP,	View
RDBF2510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
NMLU1210TWG	ON Semiconductor, Bridge Rectifier Single Phase Schottky 20V Surface Mount 8-UDFN (4x4),	View
TBS20M-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-TBS,	View
DF04S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 400V Surface Mount DFS,	View
DF1510S-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
ABS210-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SOPA,	View
DF06S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 600V Surface Mount DFS,	View
FTB10F-15FTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABF,	View
KMB24STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 40V Surface Mount MBS,	View
SDB105-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount SDB-1,	View

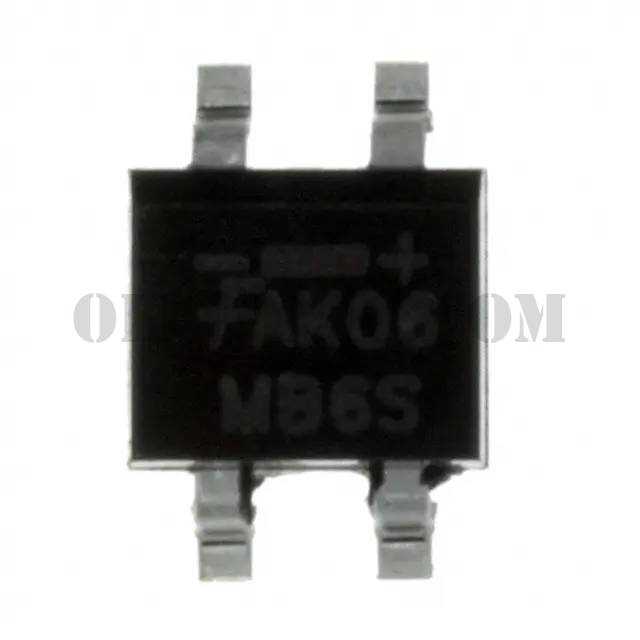

MB6S
