Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MB1S - MB8S
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	100V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1V @ 500mA
Current - Reverse Leakage @ Vr	5µA @ 100V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	4-SOIC
Base Part Number	MB1

CD-HD2004	Bourns Inc., Bridge Rectifier Single Phase Schottky 40V Surface Mount,	View
RDBF2510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
MB10S-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount MBS,	View
Z4DGP408L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 800V Surface Mount Z4-D,	View
HD04-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-MiniDIP,	View
CBRSDSH2-100 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 100V Surface Mount 4-SMDIP,	View
MB6S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount MBS-1,	View
KMB26STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 60V Surface Mount MBS,	View
YBS2204G RAG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 400V Surface Mount YBS,	View
HDBLS103G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 200V Surface Mount DBLS,	View
B10S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount MBS,	View
ABS6 REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount ABS,	View

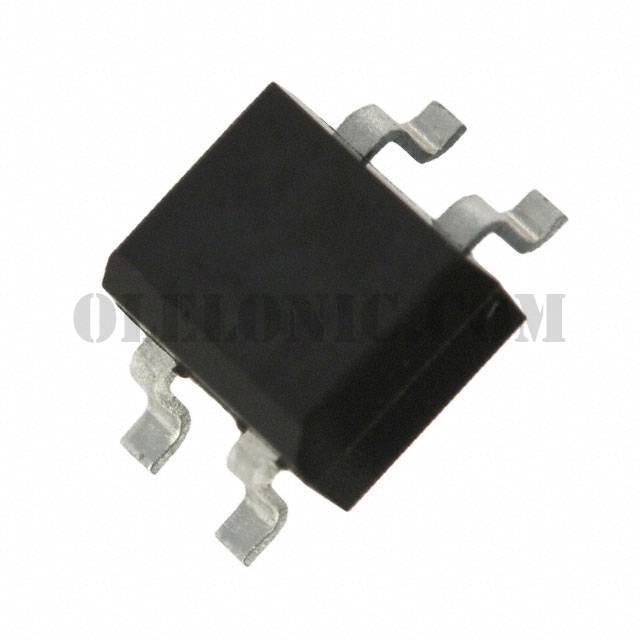

MB1S
