Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MB1S - MB8S
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	200V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1V @ 500mA
Current - Reverse Leakage @ Vr	5µA @ 200V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	4-SOIC
Base Part Number	MB2

ABS10B-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SOPA,	View
MB4S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 400V Surface Mount MBS-1,	View
MB110S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS-1,	View
DBLS207G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBLS,	View
CDBHD140L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 40V Surface Mount Mini-Dip (TO-269AA),	View
YBS3006G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Surface Mount YBS,	View
CBRLDSH2-100 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 100V Surface Mount 4-LPDIP,	View
Z4DGP408L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 800V Surface Mount Z4-D,	View
DBF2510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
ABF10UTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABF,	View
SDB107-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount SDB-1,	View
YBS3005G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount YBS,	View

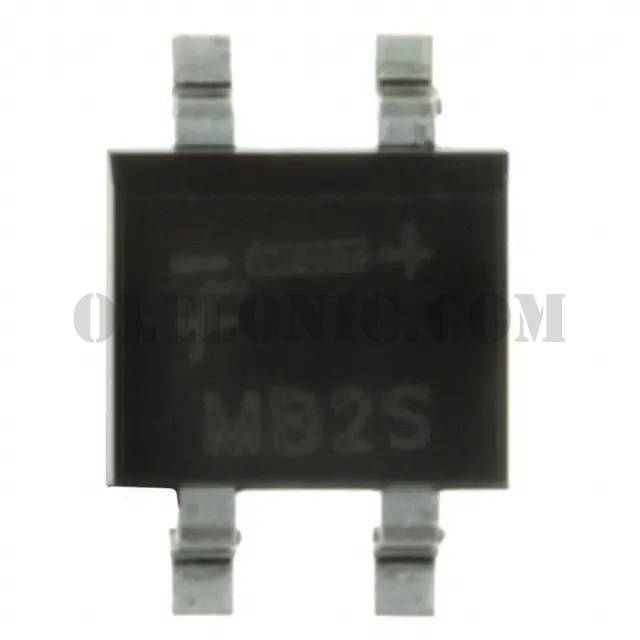

MB2S
