Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DF005S - DF10S
Standard Package	1500
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1.5A
Current - Reverse Leakage @ Vr	5µA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SDIP
Base Part Number	DF06

YBS3004G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 400V Surface Mount YBS,	View
CBR1-D100S TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SMDIP,	View
CBRHD-01 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-HD DIP,	View
DBF1510U-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
DF06S1	ON Semiconductor, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-SDIP,	View
Z4DGP410L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount Z4-D,	View
Z4GP206-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 600V Surface Mount ABS(Z4),	View
ABS210-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SOPA,	View
FTB6F-15FTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 600V Surface Mount ABF,	View
MB10S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount MBS-1,	View
MB10F-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount MBF,	View
ABS26TR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 600V Surface Mount ABS,	View

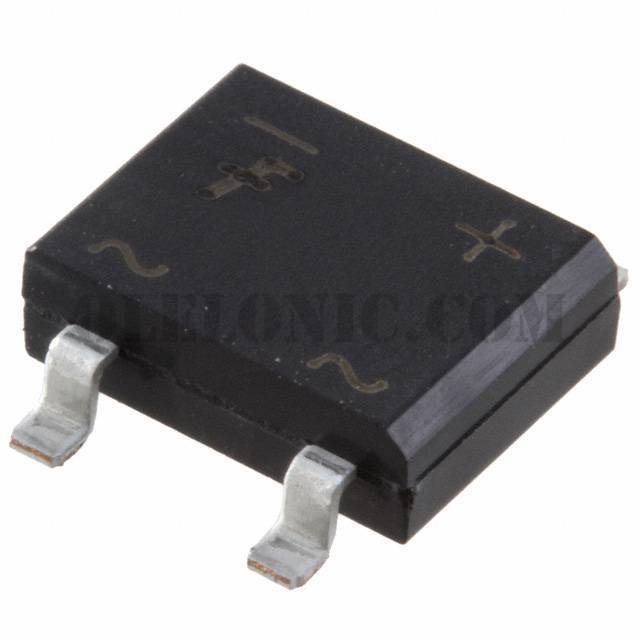

DF06S
