Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DF005S thru DF10S-G
Standard Package	50
Manufacturer	Comchip Technology
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	400V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	10µA @ 400V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	DFS
Base Part Number	DF04

HD02-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 200V Surface Mount 4-MiniDIP,	View
RMB2S RCG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 200V Surface Mount MBS,	View
SDB105-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount SDB-1,	View
CBRLDSH1-40 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 40V Surface Mount 4-LPDIP,	View
HD01-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-MiniDIP,	View
HD06-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-MiniDIP,	View
KMB23STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 30V Surface Mount MBS,	View
DF210S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
CDBHM1100L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS,	View
DBLS157G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBLS,	View
MDB8S	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V Surface Mount 4-MicroDIP/SMD,	View
MB210S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS-1,	View

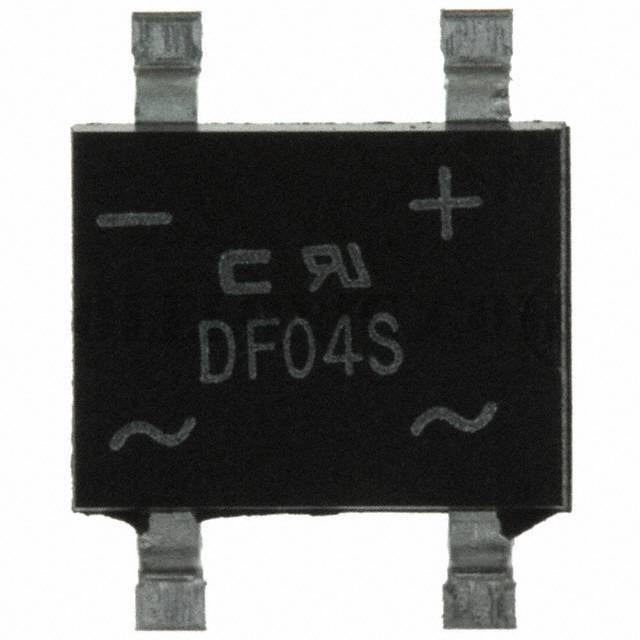

DF04S-G
