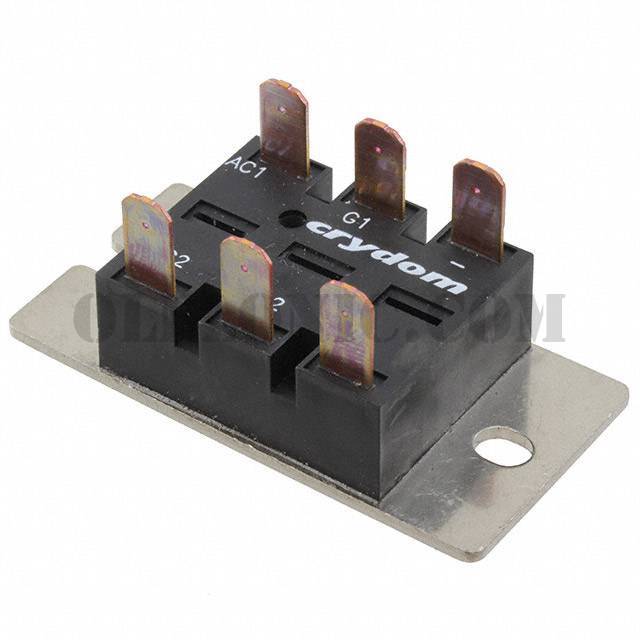

M252513F


M252513F

Part NumberM252513F

Manufacturer

Description

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

M252513F - Product Attributes

Categories Discrete Semiconductor Products / Thyristors - SCRs - Modules
Standard Package10
ManufacturerSensata-Crydom
Series-
PackagingBulk
Part StatusNot For New Designs
StructureBridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State800V
Voltage - Gate Trigger (Vgt) (Max)2.5V
Current - Gate Trigger (Igt) (Max)50mA
Current - Non Rep. Surge 50, 60Hz (Itsm)300A @ 60Hz
Current - Hold (Ih) (Max)75mA
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseModule
