Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGU Series
Standard Package	200
Manufacturer	Nichicon
Series	LGU
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.67A @ 120Hz
Ripple Current @ High Frequency	2.505A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

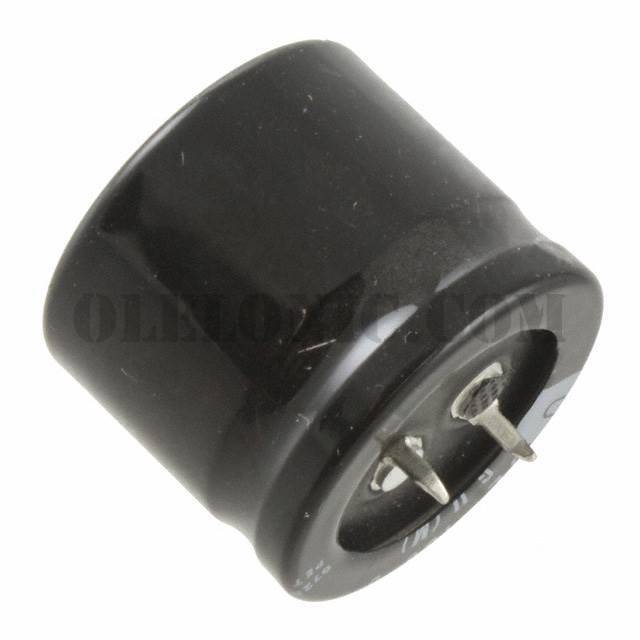

Package / Case	Radial, Can - Snap-In

LGU2Z102MELC	Nichicon, 1000µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU1H472MELZ	Nichicon, 4700µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2D122MELC	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2A122MELZ	Nichicon, 1200µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2E681MELA	Nichicon, 680µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU1H822MELB	Nichicon, 8200µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2Z331MELY	Nichicon, 330µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGUW6561MELC	Nichicon, 560µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2C681MELA	Nichicon, 680µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2G121MELZ	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2W680MELY	Nichicon, 68µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2A122MELA	Nichicon, 1200µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View

LGU2D561MELB

Part NumberLGU2D561MELB
