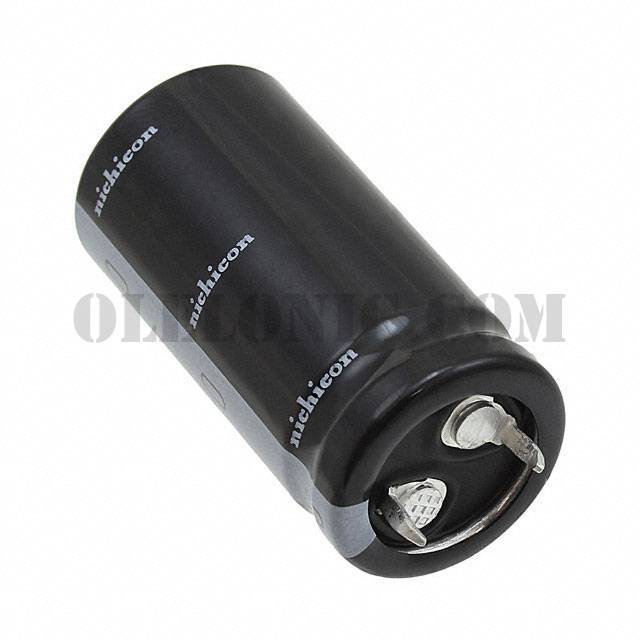

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGU Series
Standard Package	250
Manufacturer	Nichicon
Series	LGU
Packaging	Bulk
Part Status	Active
Capacitance	180µF
Tolerance	±20%
Voltage - Rated	315V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	900mA @ 120Hz
Ripple Current @ High Frequency	1.287A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.787" Dia (20.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGU2E122MELC	Nichicon, 1200µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2G331MELC	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGUW6181MELZ	Nichicon, 180µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2C272MELC	Nichicon, 2700µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2W221MELB	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2A332MELC	Nichicon, 3300µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2D122MELC	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2Z821MELC	Nichicon, 820µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2F681MELC	Nichicon, 680µF 315V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2F471MELB	Nichicon, 470µF 315V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2A222MELC	Nichicon, 2200µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2C561MELA	Nichicon, 560µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View

LGU2F181MELY

Part NumberLGU2F181MELY
