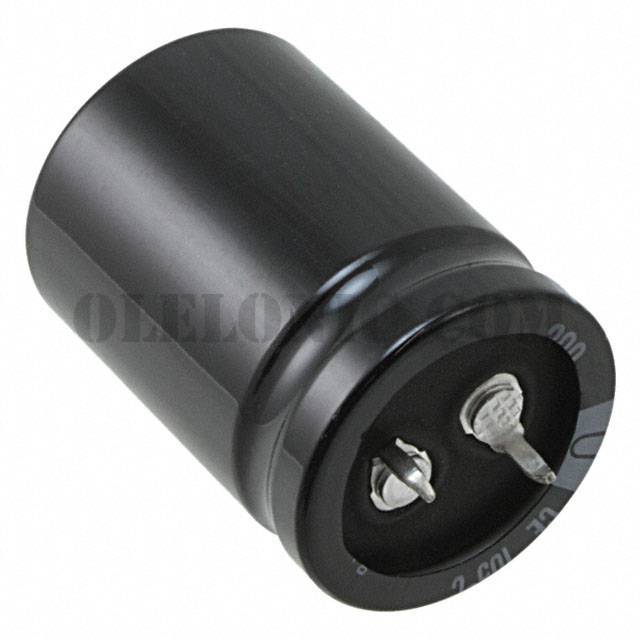

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGR Series
Standard Package	250
Manufacturer	Nichicon
Series	LGR
Packaging	Bulk
Part Status	Active
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	750mA @ 120Hz
Ripple Current @ High Frequency	1.0725A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGR2G151MELB30	Nichicon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D122MELC40	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G271MELC35	Nichicon, 270µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G121MELB25	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D821MELC30	Nichicon, 820µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2E271MELB25	Nichicon, 270µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D471MELA35	Nichicon, 470µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G181MELC25	Nichicon, 180µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D331MELZ30	Nichicon, 330µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2W221MELB50	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2E221MELZ30	Nichicon, 220µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G331MELC40	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View

LGR2G121MELA35

Part NumberLGR2G121MELA35
