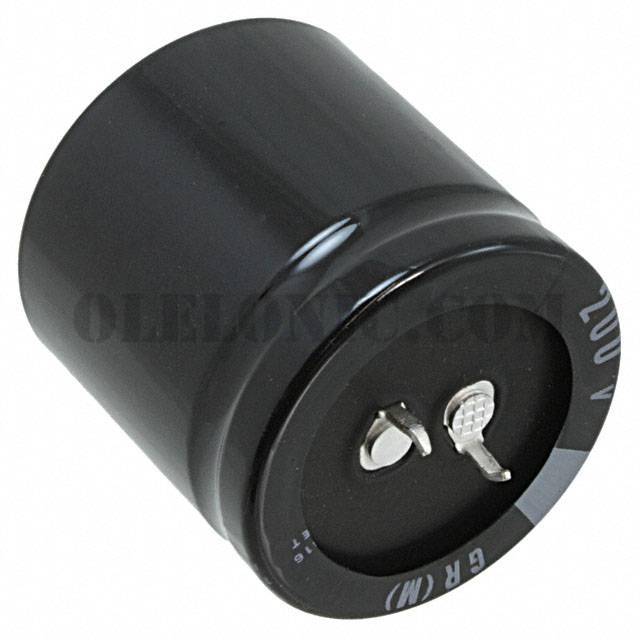

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGR Series
Standard Package	200
Manufacturer	Nichicon
Series	LGR
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.7A @ 120Hz
Ripple Current @ High Frequency	2.55A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGR2E471MELA45	Nichicon, 470µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2W390MELZ25	Nichicon, 39µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2E271MELA30	Nichicon, 270µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G181MELA45	Nichicon, 180µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D821MELA50	Nichicon, 820µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G391MELC45	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2W151MELB40	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D561MELA35	Nichicon, 560µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G331MELC40	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2E181MELZ30	Nichicon, 180µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D102MELB45	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D122MELB50	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View

LGR2E681MELC35

Part NumberLGR2E681MELC35
