Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	LBS10
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	5µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

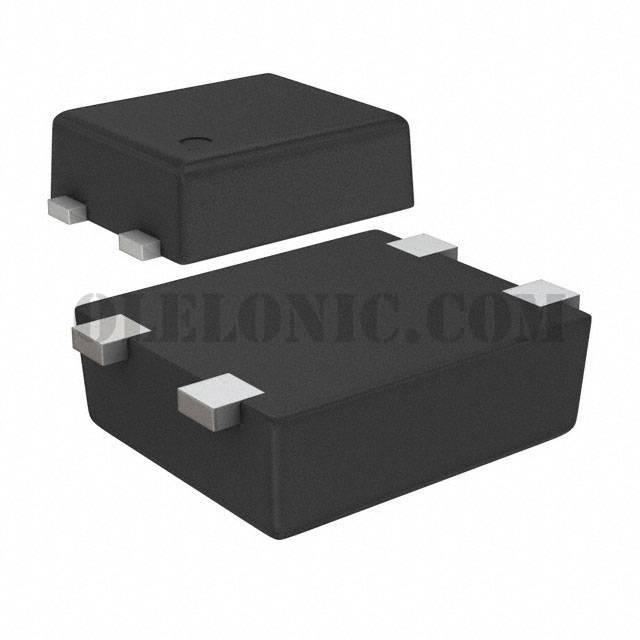

Package / Case	4-SMD, Flat Leads
Supplier Device Package	T-DFN5564-4

RMB2S RCG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 200V Surface Mount MBS,	View
TBS20M-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-TBS,	View
CDBHM1100L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS,	View
CDBHM2100L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS-2,	View
DF06S	ON Semiconductor, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-SDIP,	View
NMLU1210TWG	ON Semiconductor, Bridge Rectifier Single Phase Schottky 20V Surface Mount 8-UDFN (4x4),	View
B4S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 400V Surface Mount MBS,	View
HD02-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 200V Surface Mount 4-MiniDIP,	View
DB104S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 400V Surface Mount DBS,	View
Z4DGP408L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 800V Surface Mount Z4-D,	View
HD04-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-MiniDIP,	View
EDF1AS-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V Surface Mount DFS,	View

LBS10-13

Part NumberLBS10-13
