Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LAQ Series, 692 Type
Standard Package	200
Manufacturer	Nichicon
Series	LAQ
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	220V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.45A @ 120Hz
Ripple Current @ High Frequency	1.74A @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

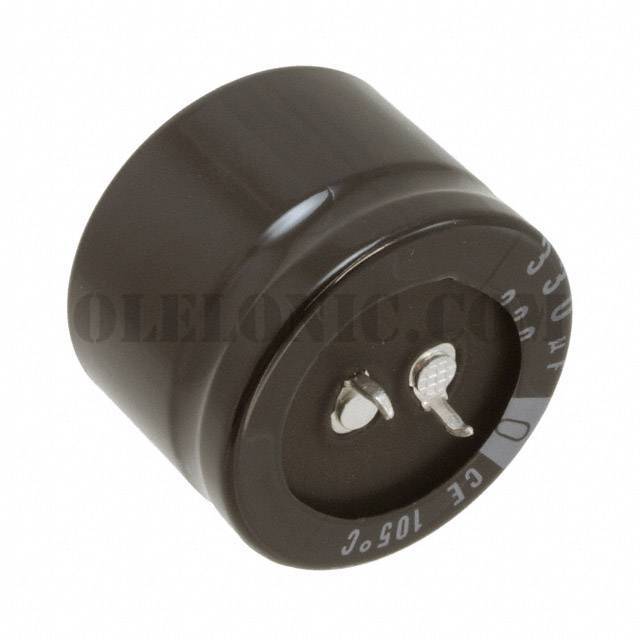

Package / Case	Radial, Can - Snap-In

LAQ2D471MELA30	Nichicon, 470µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2P271MELZ35	Nichicon, 270µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2G221MELC30	Nichicon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2G121MELB25	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2D471MELB25	Nichicon, 470µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2G101MELZ30	Nichicon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2P181MELA25	Nichicon, 180µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2P471MELC25	Nichicon, 470µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2P102MELC45	Nichicon, 1000µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2G221MELB35	Nichicon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2G470MELZ25	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2G390MELZ25	Nichicon, 39µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View

LAQ2P471MELC25

Part NumberLAQ2P471MELC25
