JANTX2N6058

JANTX2N6058

Part NumberJANTX2N6058

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN DARL 80V 12A TO-3

Datasheet2N6058, 2N6059

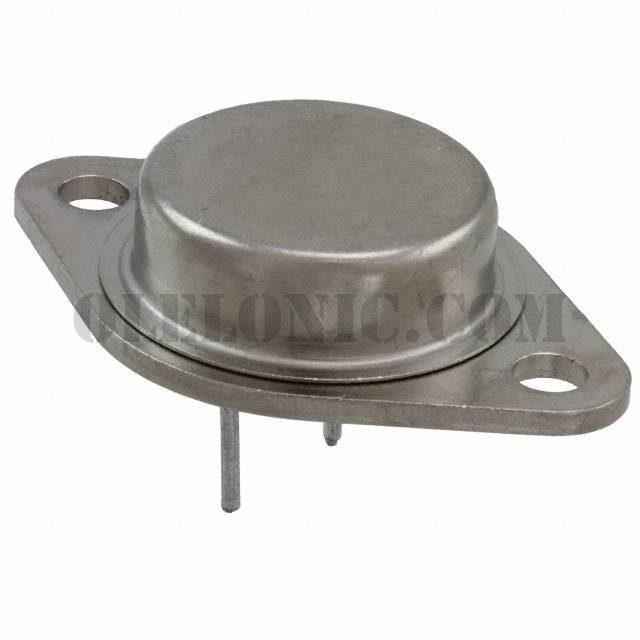

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN - Darlington 80V 12A 150W Through Hole TO-3

To learn about the specification of JANTX2N6058, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N6058 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N6058.
We are offering JANTX2N6058 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N6058 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N6058, 2N6059
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/502
Packaging	Bulk
Part Status	Active
Transistor Type	NPN - Darlington
Current - Collector (Ic) (Max)	12A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	3V @ 120mA, 12A
Current - Collector Cutoff (Max)	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 6A, 3V
Power - Max	150W
Frequency - Transition	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-204AA, TO-3
Supplier Device Package	TO-3
