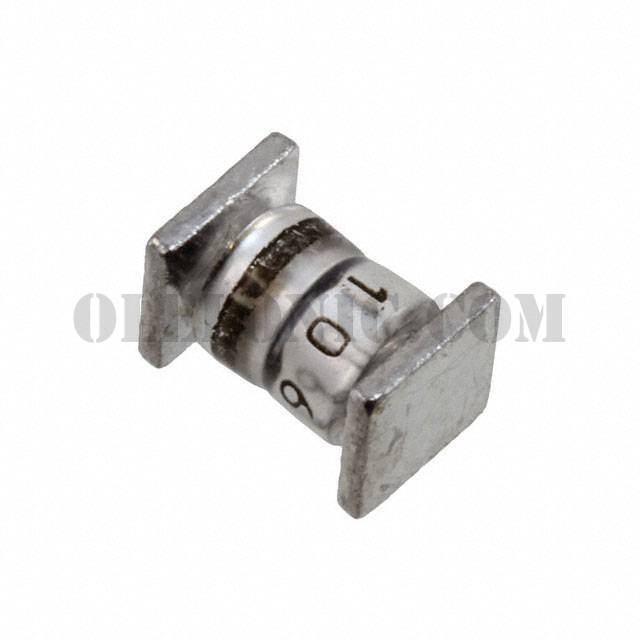

JANS1N4971US


JANS1N4971US

Part NumberJANS1N4971US

Manufacturer

Description

Datasheet

Package / CaseSQ-MELF, B

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

JANS1N4971US - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet
Standard Package1
ManufacturerMicrosemi Corporation
Series-
PackagingBulk
Part StatusActive
Voltage - Zener (Nom) (Vz)36V
Tolerance±5%
Power - Max5W
Impedance (Max) (Zzt)11 Ohms
Current - Reverse Leakage @ Vr2µA @ 27.4V
Voltage - Forward (Vf) (Max) @ If1.5V @ 1A
Operating Temperature-65°C ~ 175°C
Mounting TypeSurface Mount
Package / CaseSQ-MELF, B
Supplier Device PackageD-5B
