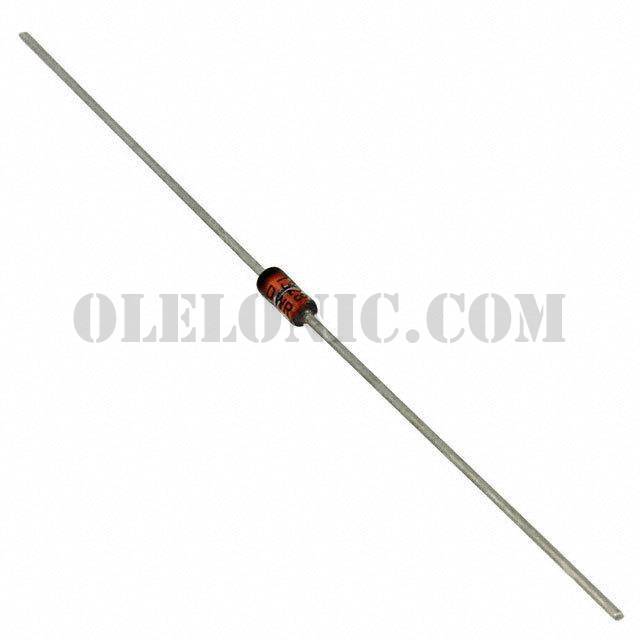

JAN1N914

JAN1N914

Part NumberJAN1N914

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 75V 200MA DO35

Datasheet1N914

Package / CaseDO-204AH, DO-35, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 75V 200mA Through Hole DO-35 (DO-204AH)

To learn about the specification of JAN1N914, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN1N914 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN1N914.
We are offering JAN1N914 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JAN1N914 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N914
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/116
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1.2V @ 50mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	20ns
Current - Reverse Leakage @ Vr	500nA @ 75V
Capacitance @ Vr, F	2.8pF @ 1.5V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35 (DO-204AH)
Operating Temperature - Junction	-65°C ~ 150°C
