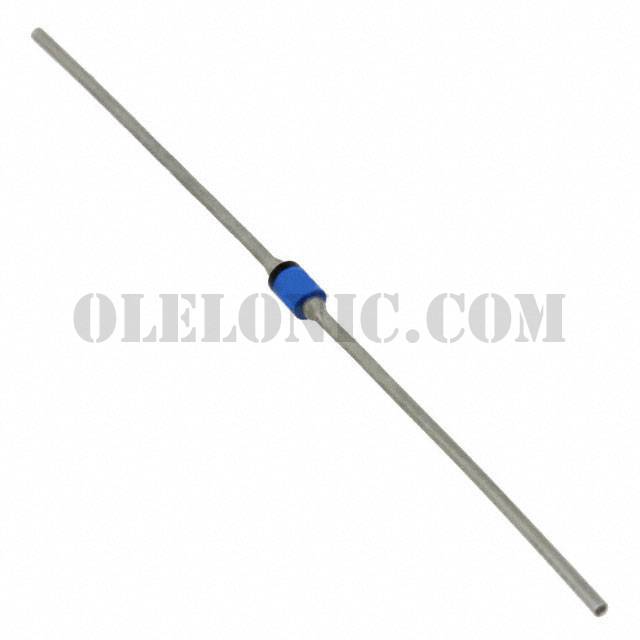

JAN1N4946

JAN1N4946

Part NumberJAN1N4946

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 600V 1A AXIAL

Datasheet1N4942-46

Package / CaseA, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 600V 1A Through Hole

To learn about the specification of JAN1N4946, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN1N4946 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN1N4946.
We are offering JAN1N4946 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JAN1N4946 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N4942-46
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/360
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	250ns
Current - Reverse Leakage @ Vr	1µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	A, Axial
Operating Temperature - Junction	-65°C ~ 175°C
