IXYN30N170CV1
IXYN30N170CV1

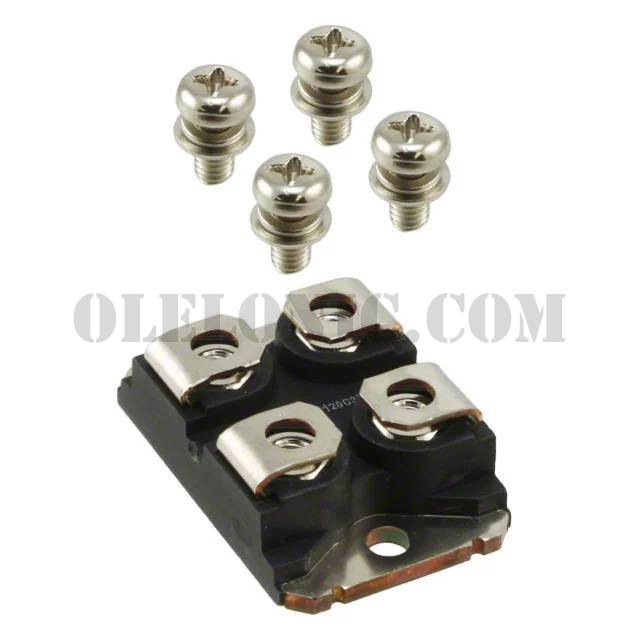

Part Number IXYN30N170CV1 Manufacturer IXYS Description 1700V/85A HIGH VOLTAGE XPT IGBT Package / Case SOT-227-4, miniBLOCUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 1700V 88A 680W Chassis Mount SOT-227B
To learn about the specification of IXYN30N170CV1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYN30N170CV1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYN30N170CV1.
We are offering IXYN30N170CV1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXYN30N170CV1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXYN30N170CV1 Preliminary Datasheet Standard Package 10 Manufacturer IXYS Series XPT™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 1700V Current - Collector (Ic) (Max) 88A Current - Collector Pulsed (Icm) 275A Vce(on) (Max) @ Vge, Ic 3.7V @ 15V, 30A Power - Max 680W Switching Energy 5.9mJ (on), 3.3mJ (off) Input Type Standard Gate Charge 140nC Td (on/off) @ 25°C 28ns/150ns Test Condition 850V, 30A, 2.7Ohm, 15V Reverse Recovery Time (trr) 160ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Chassis Mount Package / Case SOT-227-4, miniBLOC Supplier Device Package SOT-227B
