IXTP80N075L2

IXTP80N075L2

Part NumberIXTP80N075L2

ManufacturerIXYS

DescriptionMOSFET N-CH 75V 80A TO-220

DatasheetIXT(A,P,H)80N075L2

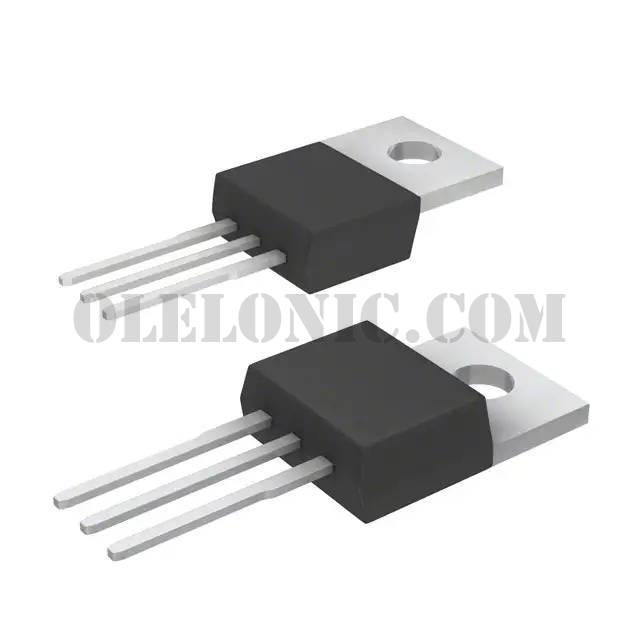

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 75V 80A (Tc) 357W (Tc) Through Hole TO-220AB

To learn about the specification of IXTP80N075L2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTP80N075L2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTP80N075L2.
We are offering IXTP80N075L2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTP80N075L2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXT(A,P,H)80N075L2
Standard Package	50
Manufacturer	IXYS
Series	Linear L2™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	24mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	103nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3600pF @ 25V
FET Feature	-
Power Dissipation (Max)	357W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
