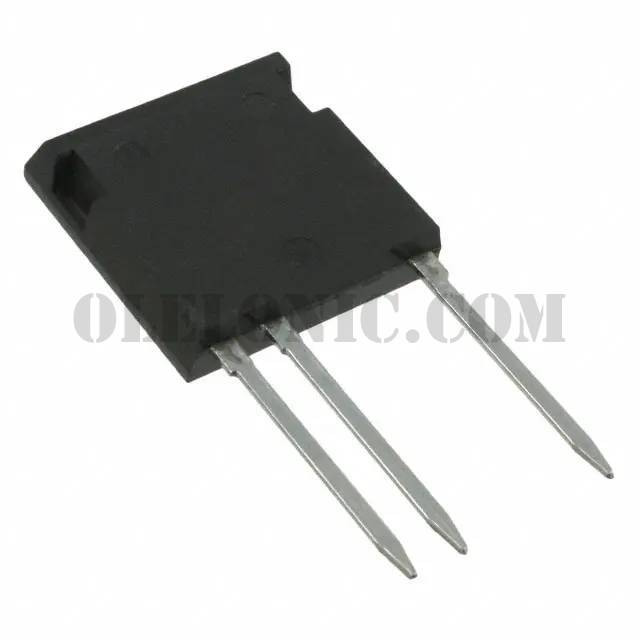

IXGF25N250
IXGF25N250
Part Number IXGF25N250
Manufacturer IXYS
Description IGBT 2500V 30A 114W I4-PAK
Package / Case i4-Pac™-5 (3 Leads)
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT NPT 2500V 30A 114W Through Hole ISOPLUS i4-PAC™
To learn about the specification of IXGF25N250, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXGF25N250 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXGF25N250.
We are offering IXGF25N250 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXGF25N250 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXGF25N250
Standard Package 25
Manufacturer IXYS
Series -
Packaging Tube
Part Status Active
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 2500V
Current - Collector (Ic) (Max) 30A
Current - Collector Pulsed (Icm) 200A
Vce(on) (Max) @ Vge, Ic 5.2V @ 15V, 75A
Power - Max 114W
Switching Energy -
Input Type Standard
Gate Charge 75nC
Td (on/off) @ 25°C -
Test Condition -
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case i4-Pac™-5 (3 Leads)
Supplier Device Package ISOPLUS i4-PAC™
Base Part Number IXG*25N250
