IXFP5N100PM

IXFP5N100PM

Part NumberIXFP5N100PM

ManufacturerIXYS

DescriptionMOSFET N-CH 1000V 2.3A TO-220

DatasheetIXFP5N100PM

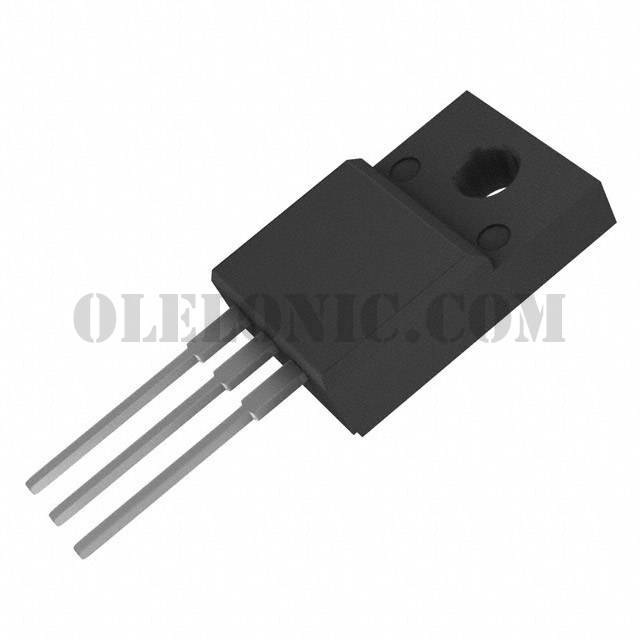

Package / CaseTO-220-3 Full Pack, Isolated Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1000V 2.3A (Tc) 42W (Tc) Through Hole TO-220 Isolated Tab

To learn about the specification of IXFP5N100PM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFP5N100PM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFP5N100PM.
We are offering IXFP5N100PM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFP5N100PM - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFP5N100PM
Standard Package	50
Manufacturer	IXYS
Series	HiPerFET™, PolarP2™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000V
Current - Continuous Drain (Id) @ 25°C	2.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.8Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33.4nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1830pF @ 25V
FET Feature	-
Power Dissipation (Max)	42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220 Isolated Tab
Package / Case	TO-220-3 Full Pack, Isolated Tab
