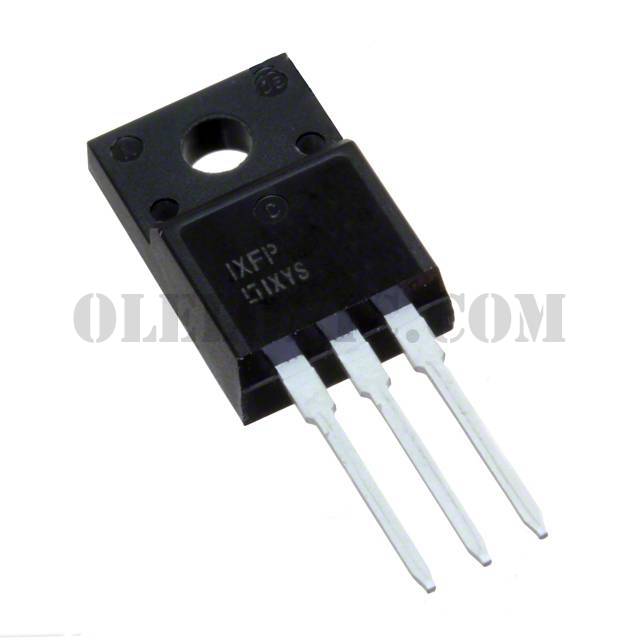

IXFP14N85XM

IXFP14N85XM

Part NumberIXFP14N85XM

ManufacturerIXYS

DescriptionMOSFET N-CHANNEL 850V 14A TO220

DatasheetIXFP14N85XM

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 850V 14A (Tc) 38W (Tc) Through Hole TO-220

To learn about the specification of IXFP14N85XM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFP14N85XM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFP14N85XM.
We are offering IXFP14N85XM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFP14N85XM - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFP14N85XM
Standard Package	50
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	850V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	550mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	5.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1043pF @ 25V
FET Feature	-
Power Dissipation (Max)	38W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3 Full Pack
