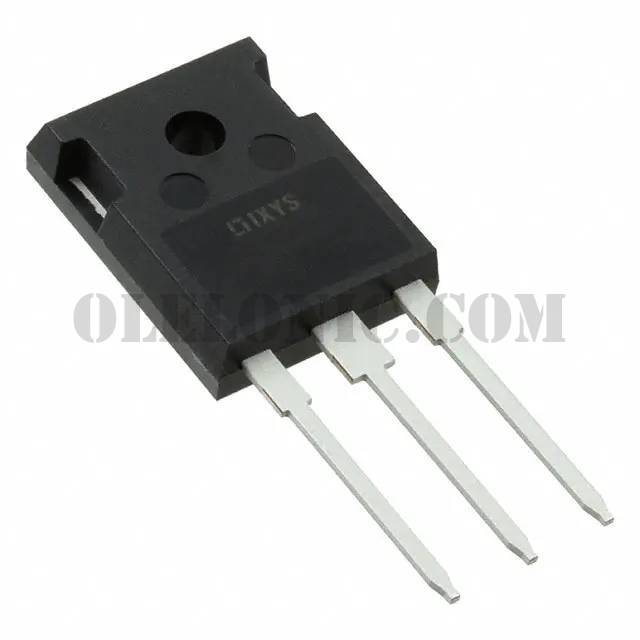

IXFH30N50Q3

IXFH30N50Q3

Part NumberIXFH30N50Q3

ManufacturerIXYS

DescriptionMOSFET N-CH 500V 30A TO-247

DatasheetIXFx30N50Q3

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 30A (Tc) 690W (Tc) Through Hole TO-247AD (IXFH)

To learn about the specification of IXFH30N50Q3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFH30N50Q3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFH30N50Q3.
We are offering IXFH30N50Q3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFH30N50Q3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFx30N50Q3
Standard Package	30
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	200mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	6.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	62nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3200pF @ 25V
FET Feature	-
Power Dissipation (Max)	690W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247AD (IXFH)
Package / Case	TO-247-3
