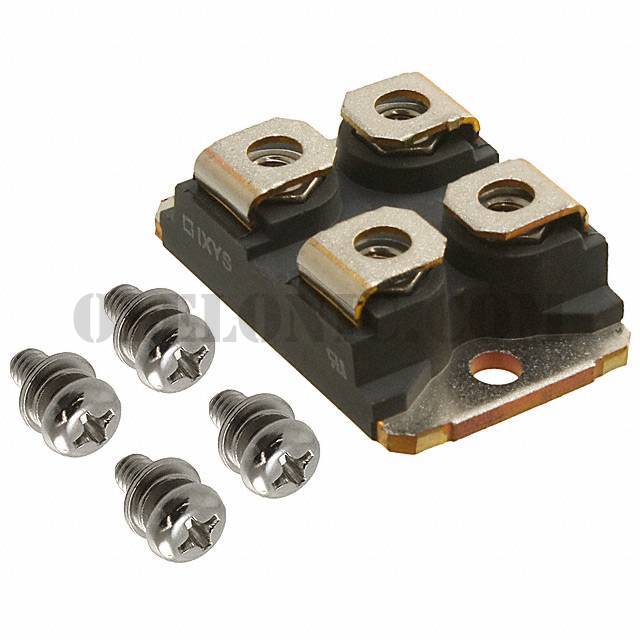

IXDN75N120

IXDN75N120

Part NumberIXDN75N120

ManufacturerIXYS

DescriptionIGBT 1200V 150A SOT-227B

DatasheetIXDN75N120

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Single 1200V 150A 660W Chassis Mount SOT-227B

To learn about the specification of IXDN75N120, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXDN75N120 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXDN75N120.
We are offering IXDN75N120 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXDN75N120 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	IXDN75N120
Standard Package	10
Manufacturer	IXYS
Series	-
Part Status	Active
IGBT Type	NPT
Configuration	Single
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	150A
Power - Max	660W
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 75A
Current - Collector Cutoff (Max)	4mA
Input Capacitance (Cies) @ Vce	5.5nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SOT-227-4, miniBLOC
Supplier Device Package	SOT-227B

IXDN75N120 - Related Products

	IXDN75N120	IXYS, IGBT Module NPT Single 1200V 150A 660W Chassis Mount SOT-227B,	View
	IXDN55N120D1	IXYS, IGBT Module NPT Single 1200V 100A 450W Chassis Mount SOT-227B,	View
