IXBA14N300HV
IXBA14N300HV

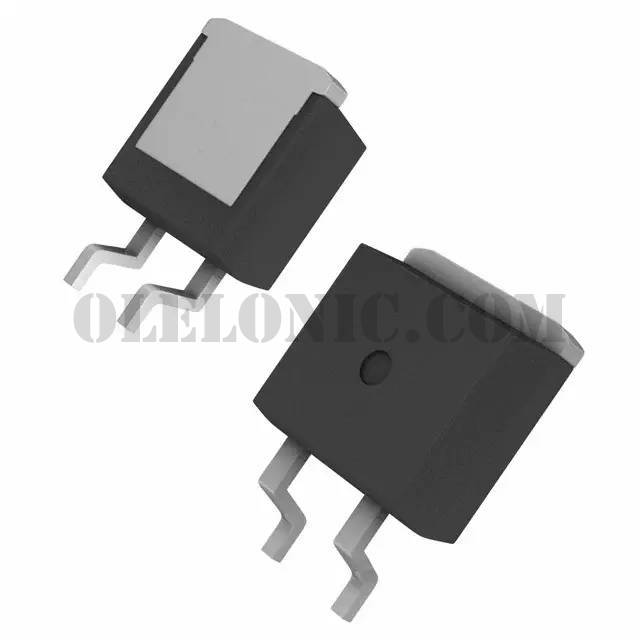

Part Number IXBA14N300HV Manufacturer IXYS Description REVERSE CONDUCTING IGBT Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263ABUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT NPT 3000V 38A 200W Surface Mount TO-263
To learn about the specification of IXBA14N300HV, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXBA14N300HV with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXBA14N300HV.
We are offering IXBA14N300HV for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXBA14N300HV - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXBx14N300HV Standard Package 50 Manufacturer IXYS Series BIMOSFET™ Packaging Tube Part Status Active IGBT Type NPT Voltage - Collector Emitter Breakdown (Max) 3000V Current - Collector (Ic) (Max) 38A Current - Collector Pulsed (Icm) 120A Vce(on) (Max) @ Vge, Ic 2.7V @ 15V, 14A Power - Max 200W Switching Energy - Input Type Standard Gate Charge 62nC Td (on/off) @ 25°C 40ns/166ns Test Condition 960V, 14A, 20Ohm, 15V Reverse Recovery Time (trr) 1.4µs Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB Supplier Device Package TO-263
