APT50GT120B2RG
APT50GT120B2RG

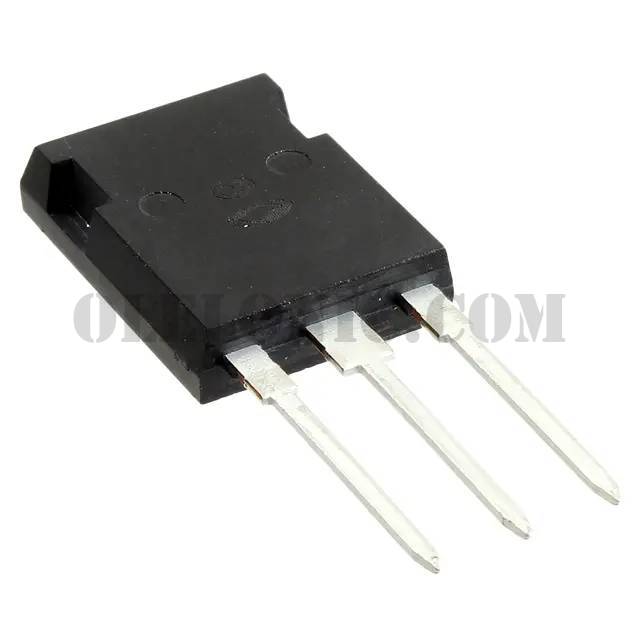

Part Number APT50GT120B2RG Description IGBT 1200V 94A 625W TO247 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT NPT 1200V 94A 625W Through Hole
To learn about the specification of APT50GT120B2RG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT50GT120B2RG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT50GT120B2RG.
We are offering APT50GT120B2RG for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
APT50GT120B2RG - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet APT50GT120B2R.120LR(G) Standard Package 1 Manufacturer Microsemi Corporation Series Thunderbolt IGBT® Packaging Tube Part Status Active IGBT Type NPT Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 94A Current - Collector Pulsed (Icm) 150A Vce(on) (Max) @ Vge, Ic 3.7V @ 15V, 50A Power - Max 625W Switching Energy 2330µJ (off) Input Type Standard Gate Charge 340nC Td (on/off) @ 25°C 24ns/230ns Test Condition 800V, 50A, 4.7Ohm, 15V Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-247-3
