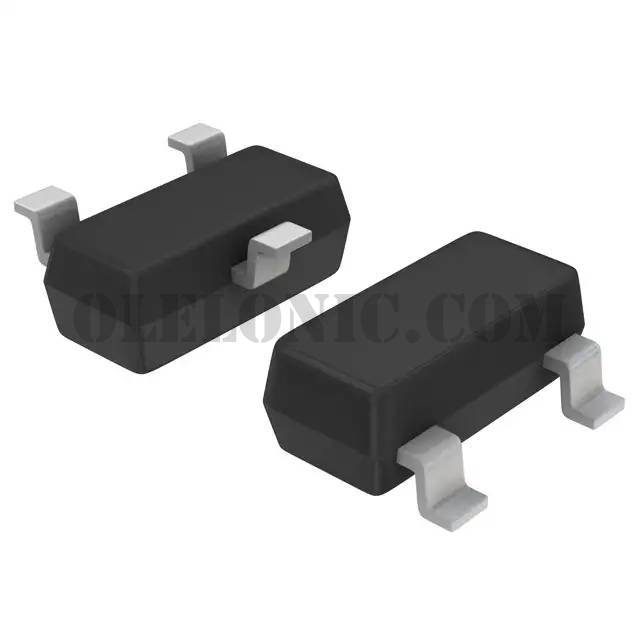

IRLML6401TRPBF

Part NumberIRLML6401TRPBF

To learn about the specification of IRLML6401TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRLML6401TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRLML6401TRPBF.
We are offering IRLML6401TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRLML6401PbF
Standard Package	3000
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	50mOhm @ 4.3A, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15nC @ 5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	830pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
