IRL80HS120

IRL80HS120

Part NumberIRL80HS120

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 80V 12.5A 6PQFN

DatasheetIRL80HS120

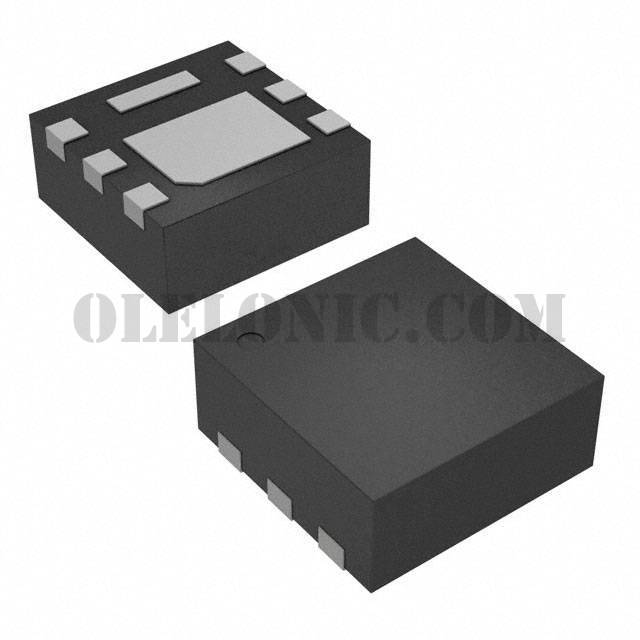

Package / Case6-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 80V 12.5A (Tc) 11.5W (Tc) Surface Mount 6-PQFN (2x2)

To learn about the specification of IRL80HS120, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRL80HS120 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRL80HS120.
We are offering IRL80HS120 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRL80HS120 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRL80HS120
Standard Package	4000
Manufacturer	Infineon Technologies
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	12.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	32mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	2V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	7nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	540pF @ 25V
FET Feature	-
Power Dissipation (Max)	11.5W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-VDFN Exposed Pad
