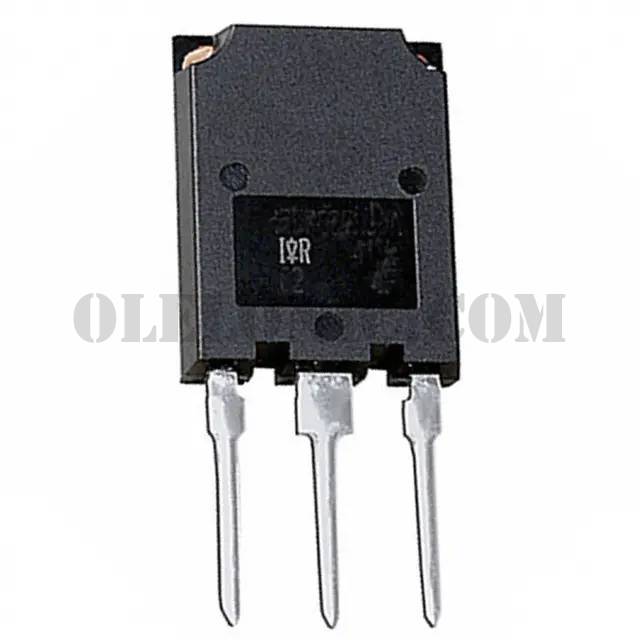

IRG4PSH71KDPBF

IRG4PSH71KDPBF

Part NumberIRG4PSH71KDPBF

ManufacturerInfineon Technologies

DescriptionIGBT 1200V 78A 350W SUPER247

DatasheetIRG4PSH71KDPbF

Package / CaseTO-274AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT 1200V 78A 350W Through Hole SUPER-247™ (TO-274AA)

To learn about the specification of IRG4PSH71KDPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRG4PSH71KDPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRG4PSH71KDPBF.
We are offering IRG4PSH71KDPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRG4PSH71KDPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	IRG4PSH71KDPbF
Standard Package	25
Manufacturer	Infineon Technologies
Series	-
Packaging	Bulk
Part Status	Not For New Designs
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	78A
Current - Collector Pulsed (Icm)	156A
Vce(on) (Max) @ Vge, Ic	3.9V @ 15V, 42A
Power - Max	350W
Switching Energy	5.68mJ (on), 3.23mJ (off)
Input Type	Standard
Gate Charge	410nC
Td (on/off) @ 25°C	67ns/230ns
Test Condition	800V, 42A, 5Ohm, 15V
Reverse Recovery Time (trr)	107ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-274AA
Supplier Device Package	SUPER-247™ (TO-274AA)
