IRFS7534TRL7PP

IRFS7534TRL7PP

Part NumberIRFS7534TRL7PP

ManufacturerInfineon Technologies

DescriptionMOSFET N CH 60V 240A D2PAK

DatasheetIRFS7534-7PPbF

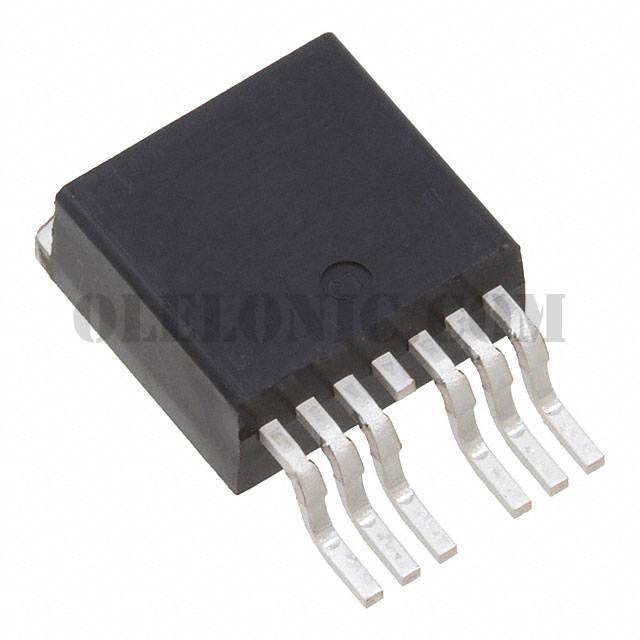

Package / CaseTO-263-7, D²Pak (6 Leads + Tab)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 240A (Tc) 290W (Tc) Surface Mount D2PAK (7-Lead)

To learn about the specification of IRFS7534TRL7PP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFS7534TRL7PP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFS7534TRL7PP.
We are offering IRFS7534TRL7PP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFS7534TRL7PP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFS7534-7PPbF
Standard Package	1
Manufacturer	Infineon Technologies
Series	HEXFET®, StrongIRFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.95mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	300nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9990pF @ 25V
FET Feature	-
Power Dissipation (Max)	290W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK (7-Lead)
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
