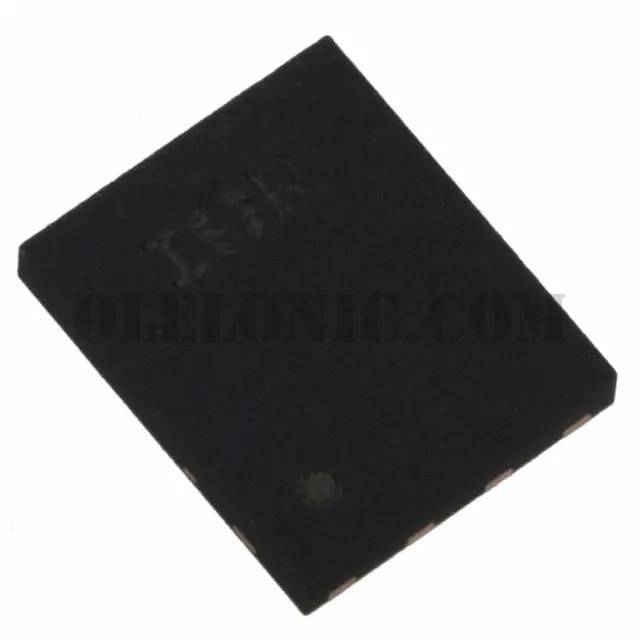

IRFH9310TRPBF

IRFH9310TRPBF

Part NumberIRFH9310TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET P-CH 30V 21A PQFN

DatasheetIRFH9310PBF

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 21A (Ta), 40A (Tc) 3.1W (Ta) Surface Mount PQFN (5x6)

To learn about the specification of IRFH9310TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFH9310TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFH9310TRPBF.
We are offering IRFH9310TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFH9310TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFH9310PBF
Standard Package	4000
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.6mOhm @ 21A, 10V
Vgs(th) (Max) @ Id	2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	58nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5250pF @ 15V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6)
Package / Case	8-PowerVDFN
