IRFH8311TRPBF
IRFH8311TRPBF

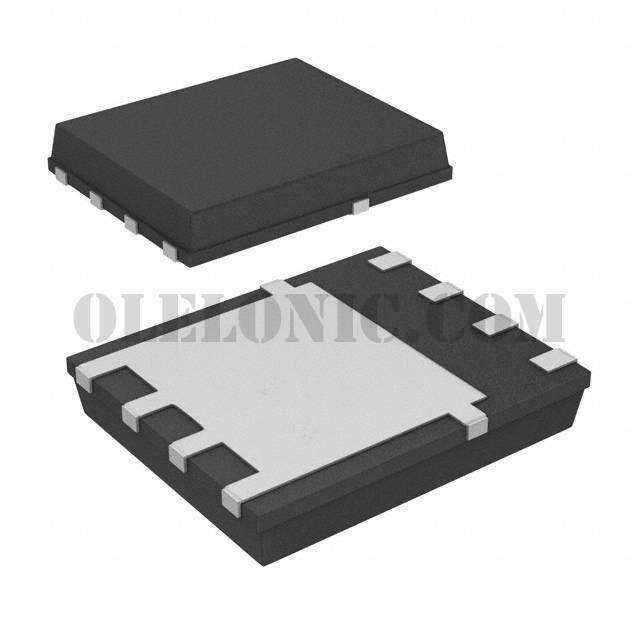

Part Number IRFH8311TRPBF
Description MOSFET N CH 30V 32A PQFN5X6
Package / Case 8-TQFN Exposed Pad
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 30V 32A (Ta), 169A (Tc) 3.6W (Ta), 96W (Tc) Surface Mount PQFN (5x6)
To learn about the specification of IRFH8311TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFH8311TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFH8311TRPBF.
We are offering IRFH8311TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IRFH8311TRPBF - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet IRFH8311PBF
Standard Package 4000
Manufacturer Infineon Technologies
Series HEXFET®
Packaging Tape & Reel (TR)
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 32A (Ta), 169A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 2.1mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 2.35V @ 100µA
Gate Charge (Qg) (Max) @ Vgs 66nC @ 10V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 4960pF @ 10V
FET Feature -
Power Dissipation (Max) 3.6W (Ta), 96W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PQFN (5x6)
Package / Case 8-TQFN Exposed Pad
