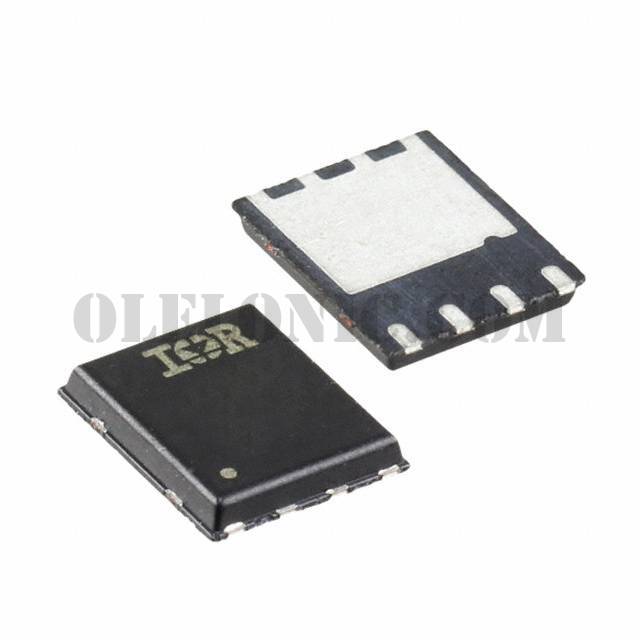

IRFH7085TRPBF

IRFH7085TRPBF

Part NumberIRFH7085TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 60V 23A 6-PQFN

DatasheetIRFH7085TRPbF

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 100A (Tc) 156W (Tc) Surface Mount PQFN (5x6)

To learn about the specification of IRFH7085TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFH7085TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFH7085TRPBF.
We are offering IRFH7085TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFH7085TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFH7085TRPbF
Standard Package	4000
Manufacturer	Infineon Technologies
Series	StrongIRFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	3.7V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	165nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6460pF @ 25V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6)
Package / Case	8-PowerVDFN
