IRF7580MTRPBF

IRF7580MTRPBF

Part NumberIRF7580MTRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 60V 114A DIRECTFET

DatasheetIRF7580MTRPbF

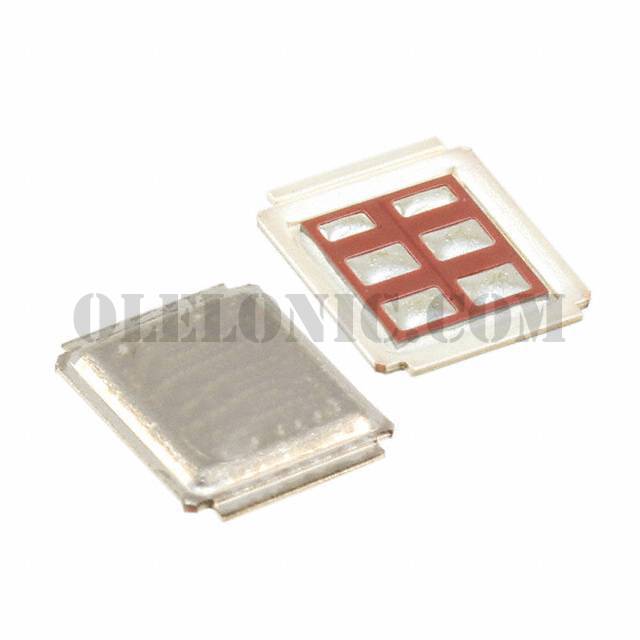

Package / CaseDirectFET™ Isometric ME

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 114A (Tc) 115W (Tc) Surface Mount DirectFET™ Isometric ME

To learn about the specification of IRF7580MTRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF7580MTRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF7580MTRPBF.
We are offering IRF7580MTRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF7580MTRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRF7580MTRPbF
Standard Package	1
Manufacturer	Infineon Technologies
Series	StrongIRFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	114A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.6mOhm @ 70A, 10V
Vgs(th) (Max) @ Id	3.7V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	180nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6510pF @ 25V
FET Feature	-
Power Dissipation (Max)	115W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric ME
Package / Case	DirectFET™ Isometric ME
