CSD17552Q3A

CSD17552Q3A

Part NumberCSD17552Q3A

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 30V 15A 8SON

DatasheetCSD17552Q3A

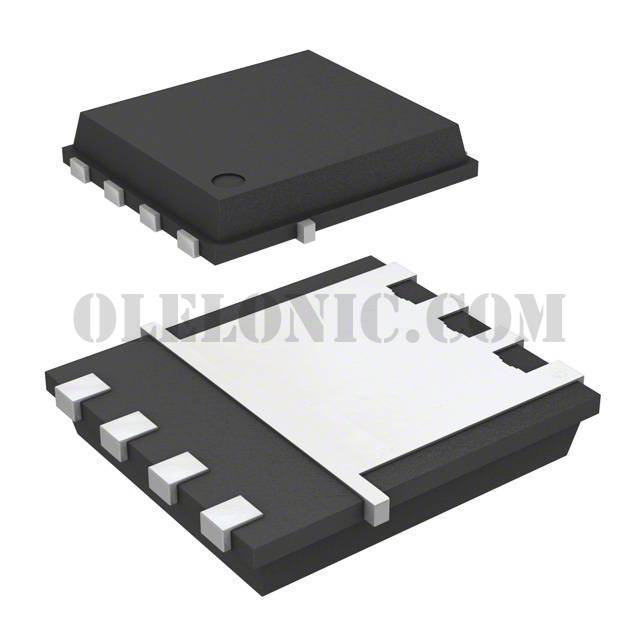

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 15A (Ta), 60A (Tc) 2.6W (Ta) Surface Mount 8-SON (3.3x3.3)

To learn about the specification of CSD17552Q3A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD17552Q3A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD17552Q3A.
We are offering CSD17552Q3A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD17552Q3A - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD17552Q3A
Standard Package	2500
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	15A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6mOhm @ 11A, 10V
Vgs(th) (Max) @ Id	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2050pF @ 15V
FET Feature	-
Power Dissipation (Max)	2.6W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SON (3.3x3.3)
Package / Case	8-PowerVDFN
