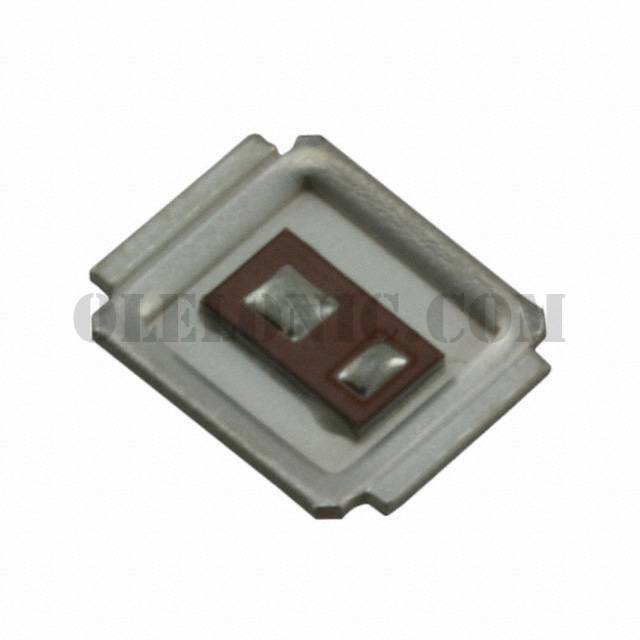

IRF6721STRPBF


IRF6721STRPBF

Part NumberIRF6721STRPBF

Manufacturer

Description

Datasheet

Package / CaseDirectFET™ Isometric SQ

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IRF6721STRPBF - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1
ManufacturerInfineon Technologies
SeriesHEXFET®
PackagingCut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.3mOhm @ 14A, 10V
Vgs(th) (Max) @ Id2.4V @ 25µA
Gate Charge (Qg) (Max) @ Vgs17nC @ 4.5V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1430pF @ 15V
FET Feature-
Power Dissipation (Max)2.2W (Ta), 42W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ SQ
Package / CaseDirectFET™ Isometric SQ
