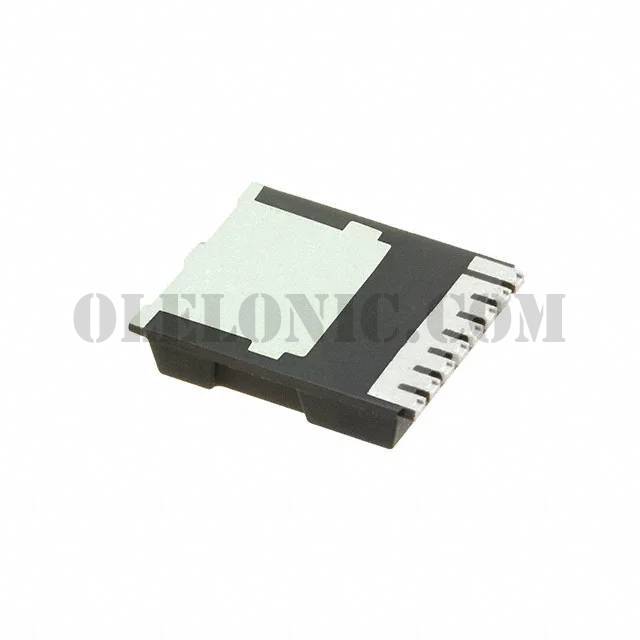

IPT111N20NFDATMA1

IPT111N20NFDATMA1

Part NumberIPT111N20NFDATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 200V 96A HSOF-8

DatasheetIPT111N20NFD

Package / Case8-PowerSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 96A (Tc) 375W (Tc) Surface Mount PG-HSOF-8-1

To learn about the specification of IPT111N20NFDATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPT111N20NFDATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPT111N20NFDATMA1.
We are offering IPT111N20NFDATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPT111N20NFDATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPT111N20NFD
Standard Package	2000
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	96A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	11.1mOhm @ 96A, 10V
Vgs(th) (Max) @ Id	4V @ 267µA
Gate Charge (Qg) (Max) @ Vgs	87nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7000pF @ 100V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HSOF-8-1
Package / Case	8-PowerSFN
