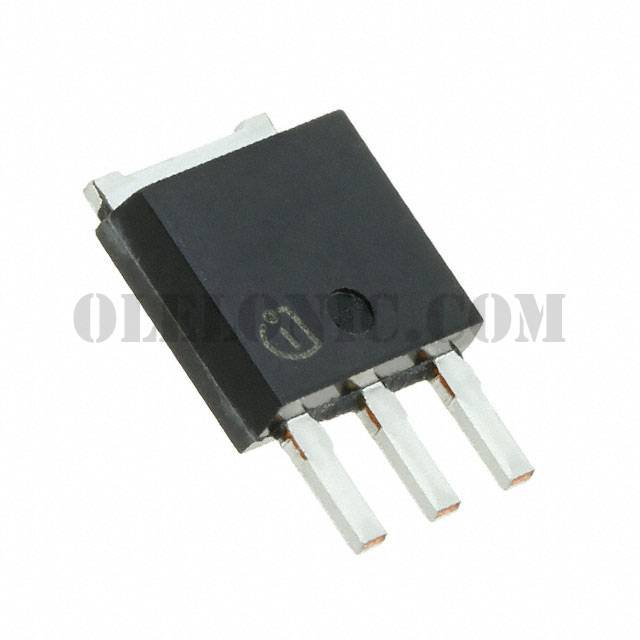

IPS70R950CEAKMA1

IPS70R950CEAKMA1

Part NumberIPS70R950CEAKMA1

ManufacturerInfineon Technologies

DescriptionMOSFET NCH 700V 7.4A TO251

DatasheetIPx70R950CE

Package / CaseTO-251-3 Stub Leads, IPak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 700V 7.4A (Tc) 68W (Tc) Through Hole PG-TO251

To learn about the specification of IPS70R950CEAKMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPS70R950CEAKMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPS70R950CEAKMA1.
We are offering IPS70R950CEAKMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPS70R950CEAKMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPx70R950CE
Standard Package	1500
Manufacturer	Infineon Technologies
Series	CoolMOS™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700V
Current - Continuous Drain (Id) @ 25°C	7.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	950mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	3.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	15.3nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	328pF @ 100V
FET Feature	Super Junction
Power Dissipation (Max)	68W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO251
Package / Case	TO-251-3 Stub Leads, IPak
