FDB0105N407L

FDB0105N407L

Part NumberFDB0105N407L

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 40V 460A

DatasheetFDB0105N407L Datasheet

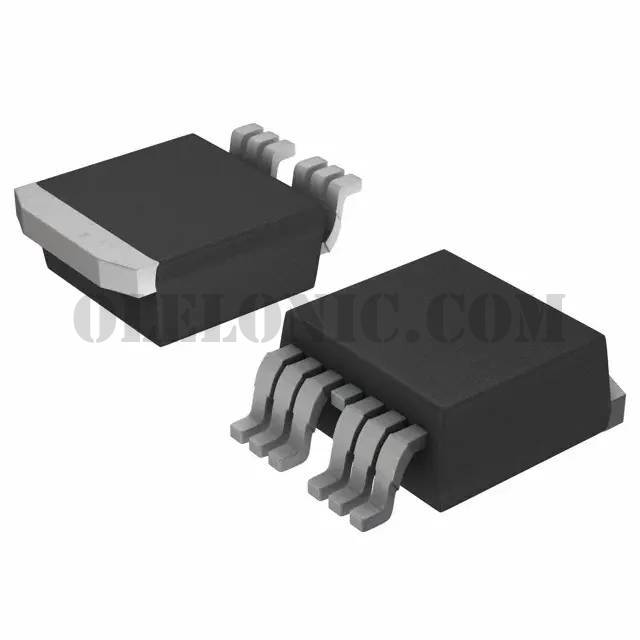

Package / CaseTO-263-7, D²Pak (6 Leads + Tab)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 460A (Tc) 3.8W (Ta), 300W (Tc) Surface Mount TO-263-7

To learn about the specification of FDB0105N407L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDB0105N407L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDB0105N407L.
We are offering FDB0105N407L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDB0105N407L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDB0105N407L Datasheet
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	460A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	0.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	291nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	23100pF @ 20V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
