IPP60R180P7XKSA1

IPP60R180P7XKSA1

Part NumberIPP60R180P7XKSA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 650V 18A TO220-3

DatasheetIPP60R180P7

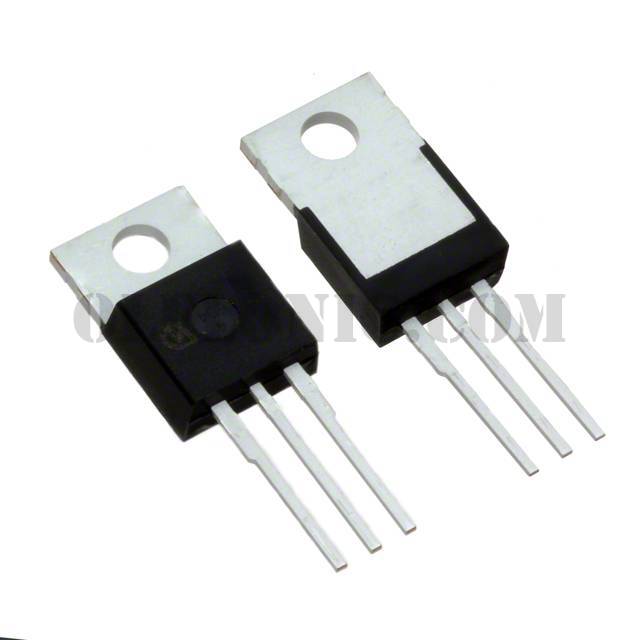

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 18A (Tc) 72W (Tc) Through Hole PG-TO220-3

To learn about the specification of IPP60R180P7XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPP60R180P7XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPP60R180P7XKSA1.
We are offering IPP60R180P7XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPP60R180P7XKSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPP60R180P7
Standard Package	500
Manufacturer	Infineon Technologies
Series	CoolMOS™ P7
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	180mOhm @ 5.6A, 10V
Vgs(th) (Max) @ Id	4V @ 280µA
Gate Charge (Qg) (Max) @ Vgs	25nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1081pF @ 400V
FET Feature	-
Power Dissipation (Max)	72W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-3
Package / Case	TO-220-3
