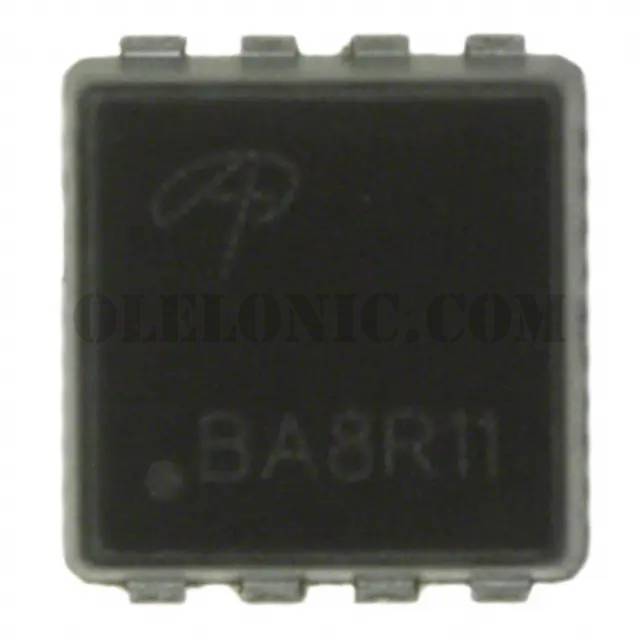

AONS36314

AONS36314

Part NumberAONS36314

ManufacturerAlpha & Omega Semiconductor Inc.

Description30V N-CHANNEL MOSFET

DatasheetAONS36314

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 6.2W (Ta), 42W (Tc) Surface Mount 8-DFN-EP (5x6)

To learn about the specification of AONS36314, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AONS36314 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AONS36314.
We are offering AONS36314 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AONS36314 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AONS36314
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.9mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	40nC @ 10V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1890pF @ 15V
FET Feature	-
Power Dissipation (Max)	6.2W (Ta), 42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (5x6)
Package / Case	8-PowerVDFN
