IPN50R650CEATMA1

IPN50R650CEATMA1

Part NumberIPN50R650CEATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CHANNEL 500V 9A SOT223

DatasheetIPN50R650CE

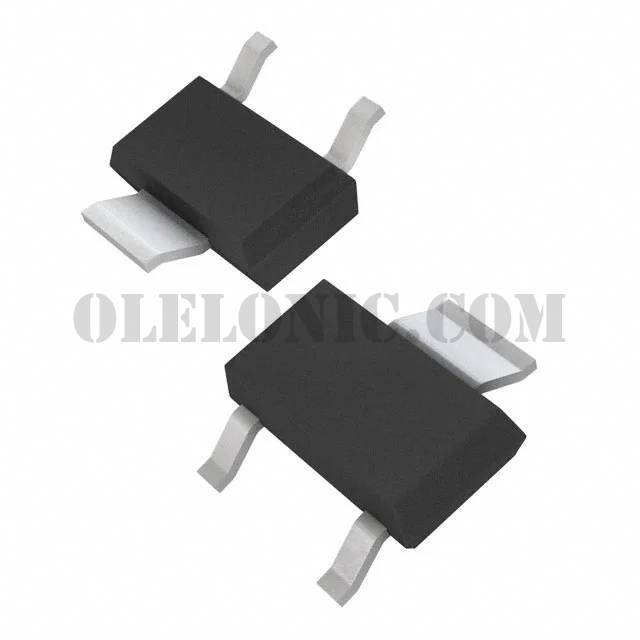

Package / CaseSOT-223-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 9A (Tc) 5W (Tc) Surface Mount PG-SOT223

To learn about the specification of IPN50R650CEATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPN50R650CEATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPN50R650CEATMA1.
We are offering IPN50R650CEATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPN50R650CEATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPN50R650CE
Standard Package	3000
Manufacturer	Infineon Technologies
Series	CoolMOS™ CE
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	13V
Rds On (Max) @ Id, Vgs	650mOhm @ 1.8A, 13V
Vgs(th) (Max) @ Id	3.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	15nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	342pF @ 100V
FET Feature	-
Power Dissipation (Max)	5W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT223
Package / Case	SOT-223-3
