IPG20N06S2L35AATMA1


IPG20N06S2L35AATMA1

Part NumberIPG20N06S2L35AATMA1

Manufacturer

Description

Datasheet

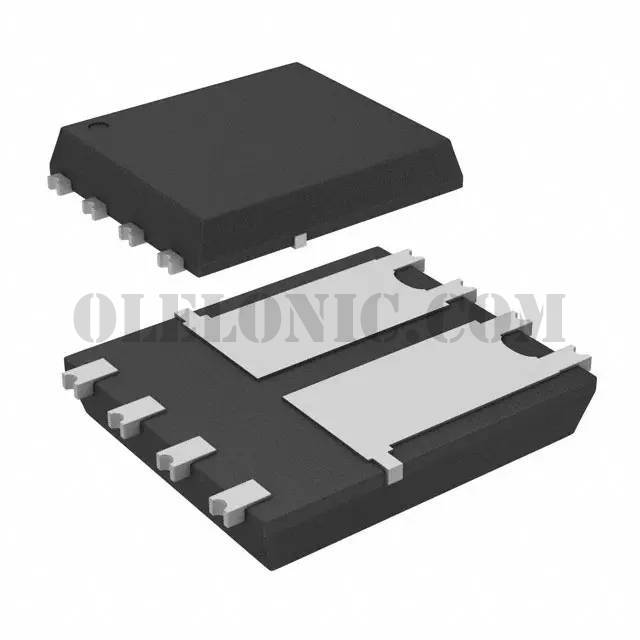

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IPG20N06S2L35AATMA1 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package5000
ManufacturerInfineon Technologies
SeriesAutomotive, AEC-Q101, OptiMOS™
PackagingTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)55V
Current - Continuous Drain (Id) @ 25°C2A (Tc)
Rds On (Max) @ Id, Vgs35mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2V @ 27µA
Gate Charge (Qg) (Max) @ Vgs23nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds790pF @ 25V
Power - Max65W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Package / Case8-PowerVDFN
Supplier Device PackagePG-TDSON-8-10
