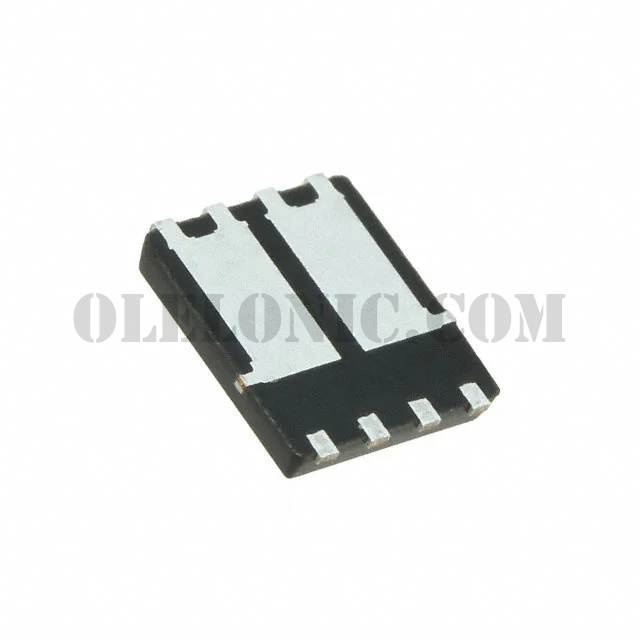

IPG16N10S461ATMA1


IPG16N10S461ATMA1

Part NumberIPG16N10S461ATMA1

Manufacturer

Description

Datasheet

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IPG16N10S461ATMA1 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package5000
ManufacturerInfineon Technologies
SeriesAutomotive, AEC-Q101, OptiMOS™
PackagingTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C16A
Rds On (Max) @ Id, Vgs61mOhm @ 16A, 10V
Vgs(th) (Max) @ Id3.5V @ 9µA
Gate Charge (Qg) (Max) @ Vgs7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds490pF @ 25V
Power - Max29W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePG-TDSON-8-4
