Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	IKD15N60RF
Standard Package	2500
Manufacturer	Infineon Technologies
Series	TrenchStop®
Packaging	Tape & Reel (TR)
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	30A
Current - Collector Pulsed (Icm)	45A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 15A
Power - Max	250W
Switching Energy	270µJ (on), 250µJ (off)
Input Type	Standard
Gate Charge	90nC
Td (on/off) @ 25°C	13ns/160ns
Test Condition	400V, 15A, 15Ohm, 15V
Reverse Recovery Time (trr)	74ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount

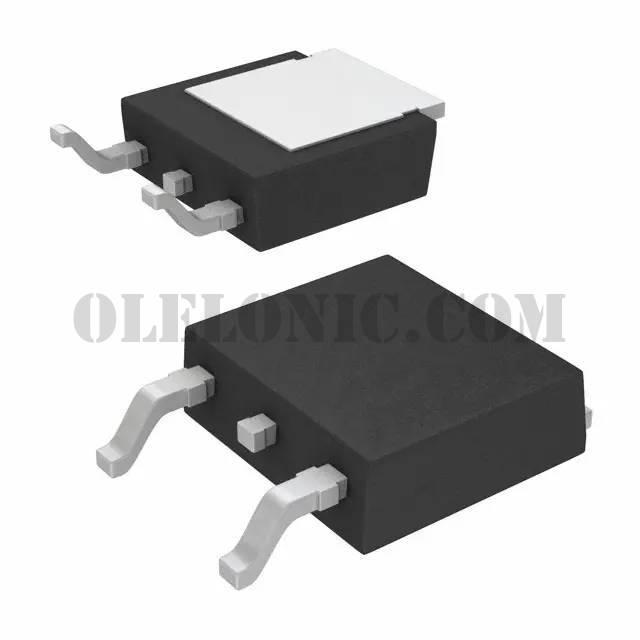

Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	PG-TO252-3
Base Part Number	*KD15N60
