IGZ100N65H5XKSA1
IGZ100N65H5XKSA1

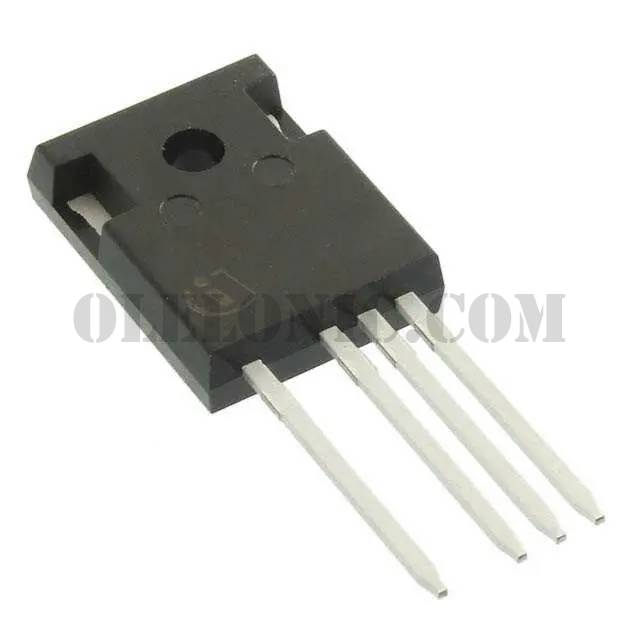

Part Number IGZ100N65H5XKSA1 Description IGBT 650V 100A SGL TO-247-4 Package / Case TO-247-4Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench 650V 161A 536W Through Hole PG-TO247-4
To learn about the specification of IGZ100N65H5XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IGZ100N65H5XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IGZ100N65H5XKSA1.
We are offering IGZ100N65H5XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IGZ100N65H5XKSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IGZ100N65H5 Standard Package 240 Manufacturer Infineon Technologies Series TrenchStop™ 5 Packaging Tube Part Status Active IGBT Type Trench Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 161A Current - Collector Pulsed (Icm) 400A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 100A Power - Max 536W Switching Energy 850µJ (on), 770µJ (off) Input Type Standard Gate Charge 210nC Td (on/off) @ 25°C 30ns/421ns Test Condition 400V, 50A, 8Ohm, 15V Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-4 Supplier Device Package PG-TO247-4
