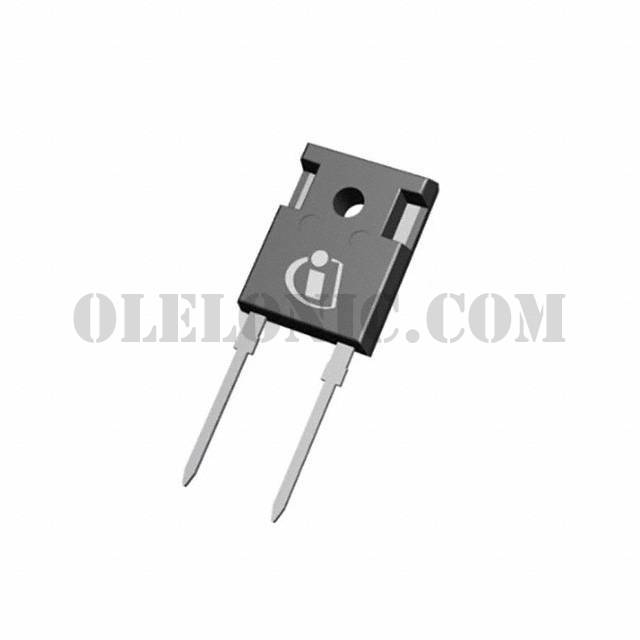

IDWD15G120C5XKSA1

Part NumberIDWD15G120C5XKSA1

ManufacturerInfineon Technologies

DescriptionSIC SCHOTTKY 1200V 15A TO247-2

DatasheetIDWD15G120C5

Package / CaseTO-247-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 1200V 49A (DC) Through Hole PG-TO247-2

To learn about the specification of IDWD15G120C5XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IDWD15G120C5XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IDWD15G120C5XKSA1.
We are offering IDWD15G120C5XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IDWD15G120C5XKSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	IDWD15G120C5
Standard Package	240
Manufacturer	Infineon Technologies
Series	CoolSiC™
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	49A (DC)
Voltage - Forward (Vf) (Max) @ If	1.65V @ 15A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	124µA @ 1200V
Capacitance @ Vr, F	1050pF @ 1V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-247-2
Supplier Device Package	PG-TO247-2
Operating Temperature - Junction	-55°C ~ 175°C
